Monitoramento

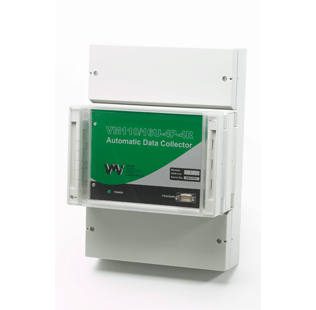

VM 110
You have important machines which you wish to monitor continuously. VM110 allows a low cost installation of 16 measuring points, 4 RPM signals and 4 relay outputs. What VM110 is for:
- VM110 is a 16 channels automatic data collector with an additional 4 RPM inputs, dedicated mainly for continuous monitoring of rotating machines.
- Up to 4 VM110 can be connected to the same computer
- It is an automatic vibration and process data-collector.
- A CD with the monitoring software SpectraLive is included.
- It is a full hardware and software instrument configurable to accept a wide range of vibration and process transducers.
- It is an instrument with the capability of measuring vibration total level, bearing condition, spectra, orbit, waveform, orders and also absolute and relative thermal grow and axial displacement.
- The instrument can measure process parameters such as temperature, flow, pressure, etc.
Resources Data sheet |
