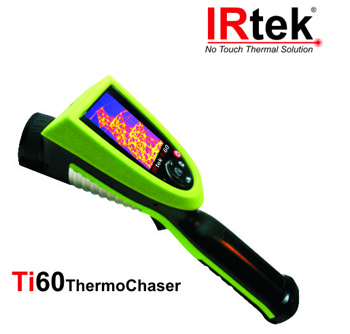

Ti60

---

IMAGING PERFORMANCE
Detector	New UFPA microbolometer (160x120 pixels, 25μm)
Spectral range	8 ~ 14μm
Thermal sensitivity	<65mK at 30°C
Field of view	21° x 16°
Lens	15mm
Spatial resolution	2.3mrad
Focus	manual
Image frame rate	50/60Hz
Electronic zoom	2x
IMAGE PRESENTATION
Display	3.5° color LCD, readable in sunlight
Video output	PAL/NTSC
MEASUREMENT
Temperature range	-20 ~ 120°C (-4° ~ 248°F) 0 ~ 350°C (32° ~ 662°F) 350 ~ 1200°C (662° ~ 2192°F) (option)
Accuracy	±2°C or ±2% (reading range),whicever is greater
Measurement modes	4 moveable spots; 3 moveable areas displaying either max, min & avg; vertical & horizontal line profile; isothermal analysis; temperature difference; temperature alarm
Display color	12 palletes available
Temperature unit	°C, °F, or °K selectable
Emissivity correction	Adjustable from 0.01 to 1.00
Ambient temperature correction	Auto, accroding to background temperature input
Optics transmission correction	Auto, according to distance, relative humidity, ambient temperature input
IMAGE STORAGE
Type	Built-in memory
File format	JPEG, with 14 bits measure data
Image storage	up to 1500 images
Vioce annotation	40 seconds voice recording per image (built-in microphone)
INTERFACES
Communication	USB
LASER LOCATOR
Classification type	Class 2, 1mW/635nm Red
POWER SYSTEM
Battery type	Rechargeable Li-ion battery
Battery operating time	3 hours (under normal temperature)
Charging system	Intelligent charging
External power	12V±5% DC
ENVIRONMENTAL
Operating/storage temperature	-40 ~ 70°C (-40 ~ 158°F)
Operating/storage humidity	≤90%, non considering
Encapsulation	IP54
PHYSICAL CHARACTERISTIC
Size	330 x 95 x86mm
Weight	650g
ACCESSORIES
Standard accessories	2 Li-ion rechargeable battery, smart battery charger (international converter), USB cable, software & manual CD, warranty card, certificate of conformance
Options	In built wide angle lens (35°x27°/5mm), in built tele lens (4°x3°/80mm). high temperature lens converter, extra li-ion battery
