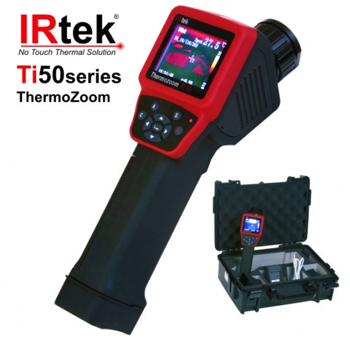

Ti50Series
| Ti50 | Ti50+ | |
Imaging Performance |
||
| Field of View | 18º x 13º | |
| Lens | 13mm | |
| Spatial Resolution | 1.9mrad | |
| Thermal Sensitivity / NETD | 100mK / 0.1ºC at 30ºC | |
| Image Frame Rate | 50 Hz full real time | 50 Hz / 60 Hz full real time |
| Focus | Manual Adjust, 30cm (11.8") to infinity | |
| Detector | 160 x 120, Uncooled Microbolometer FPA (ULIS France) | |
| Spectral Range | 8 ~ 14µm | |
Imaging Presentation |
||
| External Display | 63.5mm / 2.5º color LCD, Full screen pseudo color | |
| Video Output | Not Available | PAL / NTSC Composite Video |
Measurement |
||
| Temperature Range | -20 to 350ºC (-4 to 662ºF) | -20 to 600ºC (-42 to 1112ºF) |
| Baisc Accuracy | ±2ºC or ±2% of reading (whichever is greater) | |
| Measurement Modes | • One moveable spot • Alarm |
• Four moveable single spot • Alarm •Three moveable area displaying max, min, avg |
| • One movable area | • Isothermal band | |
| displaying max, min, avg | • One line profile displaying max & min | |
| • Temperature difference | ||
| Display Color | 3 Palettes available | 11 Palettes available |
| Temperature Unit | ºC or ºF selectable | |
| Image Adjusment | Auto / Manual gain & brightness | |
| Emissivity Correction | Variable 0.01 to 1.00 by 0.01 increments | |
| Measurement Features | Not available | Manual / automatic corrections based on user input for ambient temp, distance, & relative humidity |
Image Storage |
||
| Type / Formay | Built-in Flash Memory / JPEG(14bit thermal image) | |
| Image Storage | up to 1000 images | up to 2000 images |
| Voice Annotation | N/A | 40 seconds of digital voice clip stored with each time |
Interface |
||
| Communication | USB 2.0 | |
| Laser Locator/td> | Class 2, semiconductor diode laser: 1mW / 635nm (red) | |
Power Source |
||
| Power Supply | Built-in rechargeable Lithium-ion battery, field-replaceable | |
| External Power | Not Available | 10 ~ 15VDC |
| Battery Operation | Approximately 3 hours | |
| Charger | 100 ~ 240V AC, 50/60 Hz | |
| Power Requirement | 7.2V DC | |
Environmental |
||
| Operating/Storage Temp. | -15 to 50ºC (-4 to 122ºF) / -25 to 60ºC (-13 to 140ºF) | |
| Operating/Storage Humidity | ±90%, non-condensing | |
| Enclosure /Tripod Mounting | IP 54 / ¼ " - 20 | |
Physical Characteristics |
||
| Unit Dimensions / Weight | 250x100x72mm / 9.8x3.9x2.8" / 680g (1.5 lb) including battery | |
| Vibration/Shock Test | MIL-STD 810F Method 503.4: 1/2 sine 40g, 11 ms, 3 shocks per axis and per direction |
MIL-STD 883 Method 2002, condition A : 1/2 sine 500g, 1 ms, 5 shocks per axis and per direction |
Accessories / Options |
||
| Standard Accessories | • IR Reporter Software • Warranty Card • 2 Rechargeable Batteries • Battery Charger • USB 2.0 Cable • Anti-glare Viewer • Carrying Case & Strap • Certificate of Product Conformance • Manual |
• IR Reporter Software • Warranty Card • Battery Charger • Carrying Case and Strap • Certificate of Product Conformance •Video Cable • Headphone • Manual • Anti-glare Viewer • USB 2.0 Cable • 2 Rechargeable Batteries |
| Options | Not available | •Hi-Temperature Lens* • Power Cable • Lenses*: 7.5mm (40° x 30°), 36mm (9° x 7°), 50mm (6° x 4.5°) • Tele Converter 3x • Wide Angle Converter 0.5x Tripod Indoor Housing & Mounting Brackets |
* Lenses are not interchangeable and must be specified at times of order |
||
